A chart plotter depth finder should be chosen around the water you use, the way you run your boat, and the information you need to see at a glance. For most owners, the right unit combines readable charts, a suitably matched transducer, dependable depth data, and controls that remain usable in sun, spray, and rough water. A larger display can help, but it cannot correct poor transducer placement, missing map coverage, or a confusing interface. Start by deciding whether navigation, shallow-water awareness, fishing sonar, or network integration is your priority, then build a compatible system around that need.
The term chart plotter depth finder usually describes a multifunction display that combines GPS charting and sonar in one screen. In a split-screen view, for example, you may see your vessel’s position over a chart on one side and a real-time sonar return below it. This can be useful when entering an unfamiliar creek, working along a contour line, approaching a ramp, or locating fish-holding structure.
The chart plotter’s GPS receiver establishes position and speed over ground. Its chart application turns that position into a useful navigation picture, showing charted shorelines, aids to navigation, depth contours, hazards, channels, and other information included in the selected cartography. The depth finder function is separate: a transducer sends sound pulses through the water and interprets returning echoes to estimate depth and show objects or bottom structure beneath the boat.
That distinction matters during shopping. A unit may have excellent mapping and still require a separately selected transducer. Another may be sold in a bundle with a basic transom-mounted transducer that works well for general depth readings but is not the right choice for high-speed bottom tracking or detailed fishing sonar.
There is no universally best chart plotter depth finder. A small runabout used on inland lakes has different requirements from a cruising sailboat, a bay boat that regularly crosses shallow flats, or an offshore fishing boat. Buying the most feature-packed display can add cost and installation complexity without improving the information you use.
| Boating use | Most useful priorities | Transducer considerations | Potentially unnecessary extras |
|---|---|---|---|
| Lake cruising and family boating | Clear charts, reliable basic depth, simple route and waypoint functions | Basic transom-mount or suitable in-hull option, depending on hull | Advanced fish-target separation and extensive network expansion |
| Shallow-water coastal boating | Detailed local chart coverage, readable contours, shallow-depth alarms, easy zoom controls | Accurate low-speed depth performance and a protected installation location | High-power offshore sonar if it will not be used |
| Inshore fishing | Chart detail, traditional sonar, down-looking sonar, waypoint management | Match the transducer to hull type and intended sonar views | Large-screen bridge systems on a small open boat |
| Offshore fishing | Large display, chart detail, strong sonar capability, networking, radar compatibility where needed | Hull-appropriate transducer designed for the required depth range and speed | Entry-level transducers that cannot support the intended sonar performance |
| Coastal cruising or sailing | Chart readability, route planning, AIS and instrument-data integration where appropriate | Installation that performs reliably at normal cruising speeds and heel angles | Fishing-focused imaging modes if they do not suit the boat’s use |
A basic depth display may be enough for a pontoon boat that stays in familiar water, while a boat used for fishing may benefit from clearer bottom detail and waypoint tools. For a cruiser, planning routes and viewing AIS targets or engine data through a compatible onboard network may matter more than fish-finding modes. Decide which information you will actually look at while underway.

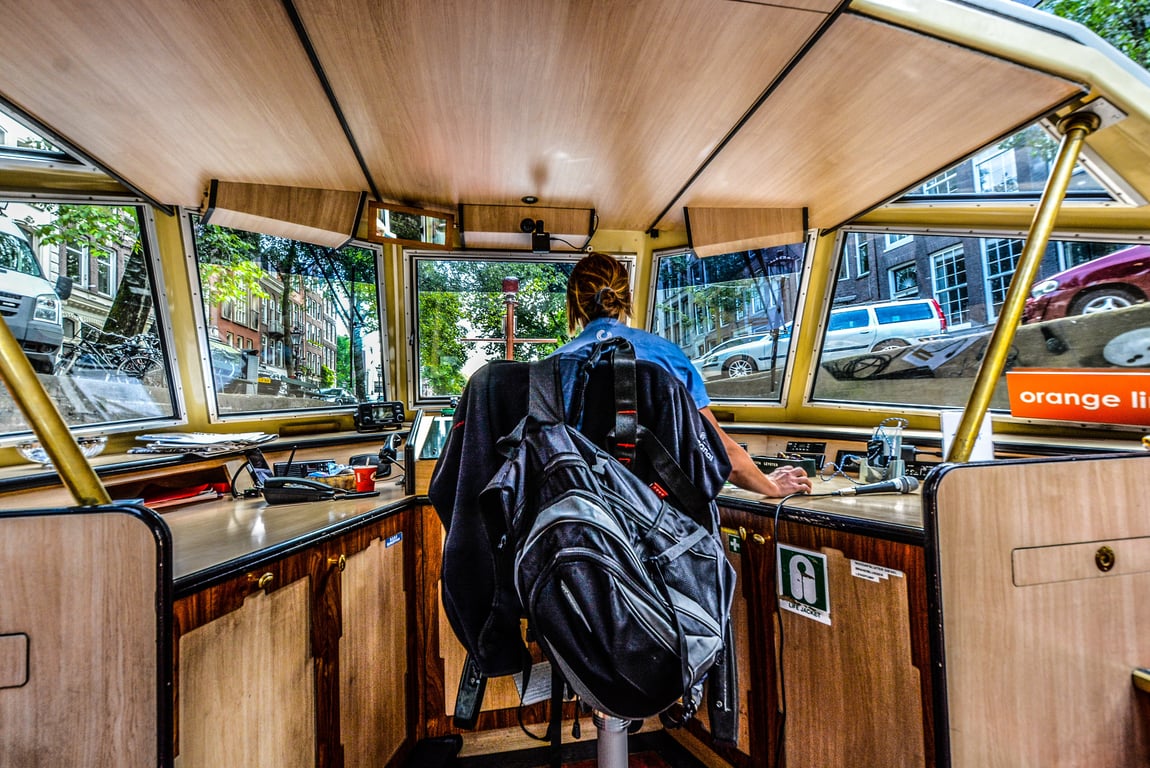

Screen size affects safety and usability because navigation data must be readable without prolonged attention at the helm. A display that looks generous on a showroom counter can become cramped once it is split between chart, sonar, engine information, and camera or radar views. Conversely, an oversized display may be difficult to mount securely on a compact center console or may obstruct forward visibility.
Measure the usable flat area at the helm, including clearance for the steering wheel, throttles, windshield frame, and any hatch or console door. Flush mounting gives a tidy result but requires enough depth behind the panel and careful cutting. A bracket mount is often easier to install and service, though it needs a solid mounting surface and protection from impact or theft when the boat is unattended.
Brightness, anti-glare treatment, viewing angle, and button layout deserve as much attention as display dimensions. Touch controls can be quick at rest, but physical keys, rotary controls, or a hybrid interface may be easier to use with wet hands and boat movement. If possible, operate the menus before buying rather than judging the unit by the home screen alone.
A chart plotter is only as useful as the cartography available for the waters you run. Confirm that the manufacturer’s supported chart options cover your normal home waters and likely cruising area. Review the chart’s presentation at useful zoom levels, especially around channels, marinas, bridges, contour lines, and areas with restricted water.
Do not assume that every chart package includes identical detail. Coverage, included data layers, aerial imagery, relief shading, subscription features, and update arrangements vary by chart provider and product generation. Check what comes with the display, what requires an additional chart card or download, and how updates are obtained before you commit to a brand ecosystem.
Electronic charts should be treated as a navigation aid, not a guarantee of current depth. Shoaling, temporary markers, dredging work, floating debris, tides, water-level changes, and local restrictions can alter the practical situation. Carry appropriate backup navigation resources for your area, monitor your surroundings, and use the depth finder as live information rather than assuming a charted contour precisely reflects the water beneath the hull.
Sonar terminology can make a straightforward buying decision sound complicated. The useful question is not which label sounds most advanced, but what picture you need and how you fish or navigate.
| Sonar type | What it shows best | Best suited to | Key limitation |
|---|---|---|---|
| Traditional 2D sonar | Depth, bottom hardness changes, arches or returns beneath the boat | General depth finding, cruising, and everyday fishing | Shows a history of what has passed beneath the transducer, not a wide photographic view |
| CHIRP sonar | Improved target separation and bottom definition compared with conventional single-frequency sonar | Anglers and boaters wanting clearer detail at depth | Performance depends heavily on the matched transducer and installation |
| Down-looking imaging | Detailed structure directly beneath the boat | Locating timber, rock, wreck features, and defined bottom changes | Coverage is limited to the area below the boat |
| Side-looking imaging | Structure and targets to either side of the boat | Searching shorelines, flats, creek channels, and likely fish-holding cover | Requires careful setup and is less useful when the boat is moving too fast or water is unsuitable |
| Forward-looking sonar | Real-time targets ahead of the transducer’s direction | Specialized fishing applications | It is not a substitute for safe navigation or an obstacle-avoidance system |
For many owners, traditional sonar or CHIRP provides the most useful return on investment. It delivers the depth information needed for ordinary boating and can show bottom changes that help with fishing. Down-looking and side-looking modes are valuable when structure-finding is a central part of your use, but they should not take priority over reliable chart coverage and a correctly installed basic depth sounder.
The transducer is one of the most important parts of the system. It determines what sonar data reaches the display, and a poor location can cause depth loss, noisy returns, or unreliable readings at speed. Treat a “display plus transducer” package as a starting point, not automatic proof that it suits your boat.
Common transducer mounting approaches include transom mounting, through-hull mounting, in-hull mounting, and trolling-motor mounting. Each has trade-offs. A transom-mounted transducer is often accessible and practical for many outboard-powered boats, but it must be placed away from aerated water and protected from trailer bunks, engine movement, and impact. A through-hull installation can provide strong performance but requires proper hull work and attention to hull material, deadrise, and fairing requirements.
In-hull transducers can avoid drilling through the bottom on some solid fiberglass hulls, but they generally do not work through every construction type and may lose performance compared with a correctly selected external installation. They are not a simple answer for cored hulls, metal hulls, or hulls where the internal structure blocks a clear signal path. Follow the transducer and boat manufacturer instructions, and use a qualified marine installer if you are unsure about drilling, sealing, or placement.
A standalone chart plotter depth finder can be all a small boat needs. However, owners upgrading a larger boat may want the display to share information with other equipment. Depending on the system, this may include engine data, heading sensors, AIS receivers or transceivers, radar, autopilot controls, VHF position data, cameras, or another display at a second helm.
NMEA 2000 is a widely used marine networking standard for sharing supported data between devices. It does not mean every function from every product will work together automatically. Check the specific data types, connectors, software requirements, and manufacturer compatibility documentation before buying. A display might receive engine RPM and fuel data from one installation but require additional components to support another feature.
Also consider the cost and physical space of a network backbone, power tee, terminators, drop cables, sensors, and installation labor. It may be sensible to buy a display with expansion capability now, but only if you have a realistic plan to use it. Avoid paying for complex networking solely because it appears on a feature list.
After installation, test the system at the dock before relying on it underway. Confirm that the unit powers on cleanly, obtains a GPS position, displays the intended chart area, and reads depth in known water. Check that the transducer cable is secure, protected from chafe, and routed away from sources of electrical interference where practical.
On the first water test, compare the depth reading at idle and at progressively higher speeds in safe water. If the reading becomes erratic or disappears, do not immediately assume the display is faulty. Transducer turbulence, angle, mounting height, cable issues, or sonar settings are frequent causes. Review the installation instructions before moving the transducer, and avoid making repeated holes in the transom without a clear diagnosis.
Set shallow-water alarms conservatively for the boat’s draft and expected conditions, then learn how the chosen depth reference affects the number shown. A reading referenced to the transducer differs from one referenced to the keel. The best setting is the one you understand and can use consistently, not simply the default configuration.
Yes. A chart plotter can show GPS position and electronic charts without a sonar transducer. It will not provide live depth readings or sonar images unless a compatible transducer is installed and connected.
Not always. A fish finder is primarily a sonar display, while a chart plotter focuses on GPS navigation and mapping. Many multifunction displays combine both functions, but some products are dedicated to one role.
Choose a size that lets you read critical information from the helm without blocking sightlines or overcrowding the console. If you expect to run chart and sonar side by side, allow enough display area for both views rather than judging size from a single full-screen chart page.
It can, provided the transducer is suitable for the application and mounted in clean water flow. Hull shape, propeller turbulence, trim, mounting position, and installation accuracy all influence whether depth remains dependable as speed increases.
No. Detailed imaging is mainly a fishing and structure-searching tool. For navigation, dependable chart coverage, live depth information, proper route planning, situational awareness, and safe boat handling are more relevant.
It is wise to have a backup plan. That may include a second independent device, paper charts where appropriate, a handheld GPS, a phone or tablet with suitable offline charting, and the knowledge to navigate safely if the primary display or boat power fails.
The best chart plotter depth finder is the one that delivers clear chart information and trustworthy depth data for your real routes and conditions. Prioritize local chart coverage, a display you can operate while underway, and a transducer selected and installed for your hull. If fishing is central to your boating, add the sonar detail that helps you find structure and manage waypoints; if cruising is the priority, invest first in navigation clarity and reliable integration. Verify compatibility before ordering, then test the system carefully in safe water before depending on it on an unfamiliar trip.
